Acid wet scrubber for Ethylene Oxide

Trevi’s Acid wet scrubber converts ethylene oxide (EtO) into ethylene glycol using a 15% sulphuric acid solution as scrubber liquid. Proven in more than 100 installations worldwide, it consistently achieves high removal efficiency across a wide range of EtO concentrations and gas flows.

Trevi’s Acid wet scrubber (AcEtO)

Principle

Trevi's Acid gas scrubbing transfers EtO from the gas phase to the acid liquid phase with a subsequent hydrolysis of EtO into ethylene glycol.

Application

Waste gases with low to very high concentrations of EtO.
Waste gases with low to very high gas flows (>50,000 cfm).
Also suited for EtO loaded waste gases coming from e.g. alkoxylation plants.

Discover our realisations

Key Benefits

Flexible / Robust

Operates at ambient temperature without fuel heating
Can handle very high EtO concentrations
Tolerates variable gas flows
Low risk of instrumentation failure compared to combustion systems

Efficient / Reliable

No warm-up time — immediate availability
Automated liquid management in acid liquid phase (<1 hr changeover)
<4 hrs/month operating labor

Safety

IECEx hazardous area compliant

Realisations

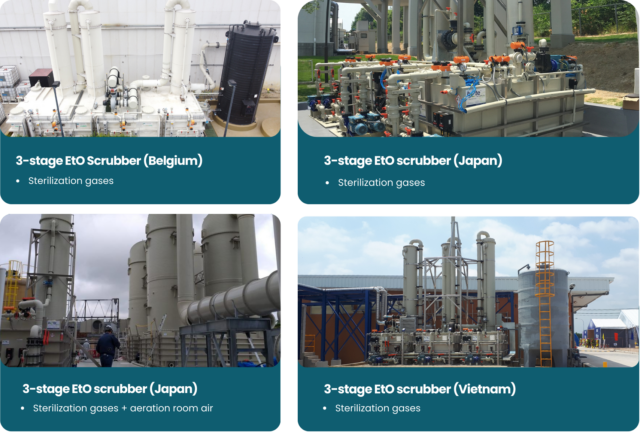

Trevi has implemented more than 110 Acid scrubber systems across the world for sterilization facilities and chemical plants. Examples include multi-stage EtO scrubbers in Belgium, Japan, and Vietnam.

Speak to an expert

Fill in the form and one of Trevi’s specialists will contact you to discuss your specific EtO removal needs.
